PUL CNC 3-Mbali Zokhomerera Makina a U-Beams of Truck Chassis Chithunzi Chowonetsedwa

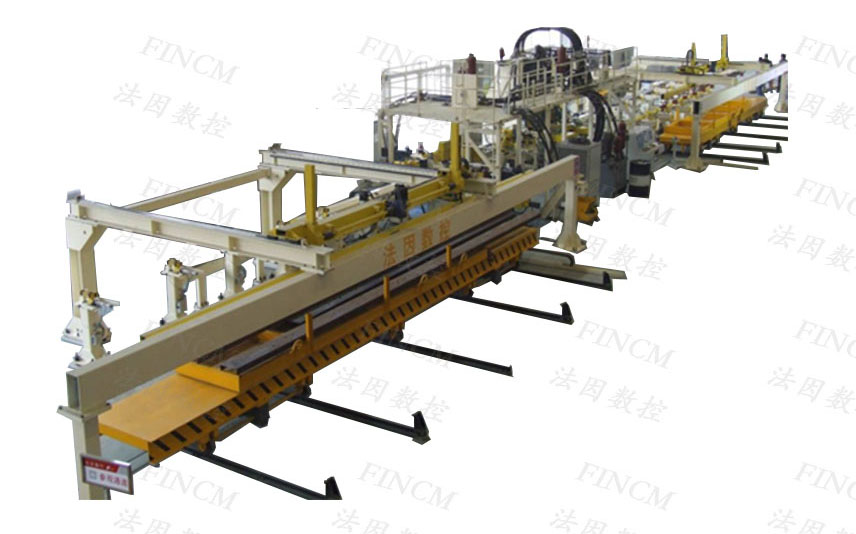

PUL CNC 3-Sides Punching Machine for U-Beams of Truck Chassis

Chiyambi cha Ntchito Yopangira Zinthu

a) Ndi galimoto/lori ya U Beam CNC Punching Machine, yomwe imagwiritsidwa ntchito popanga magalimoto.

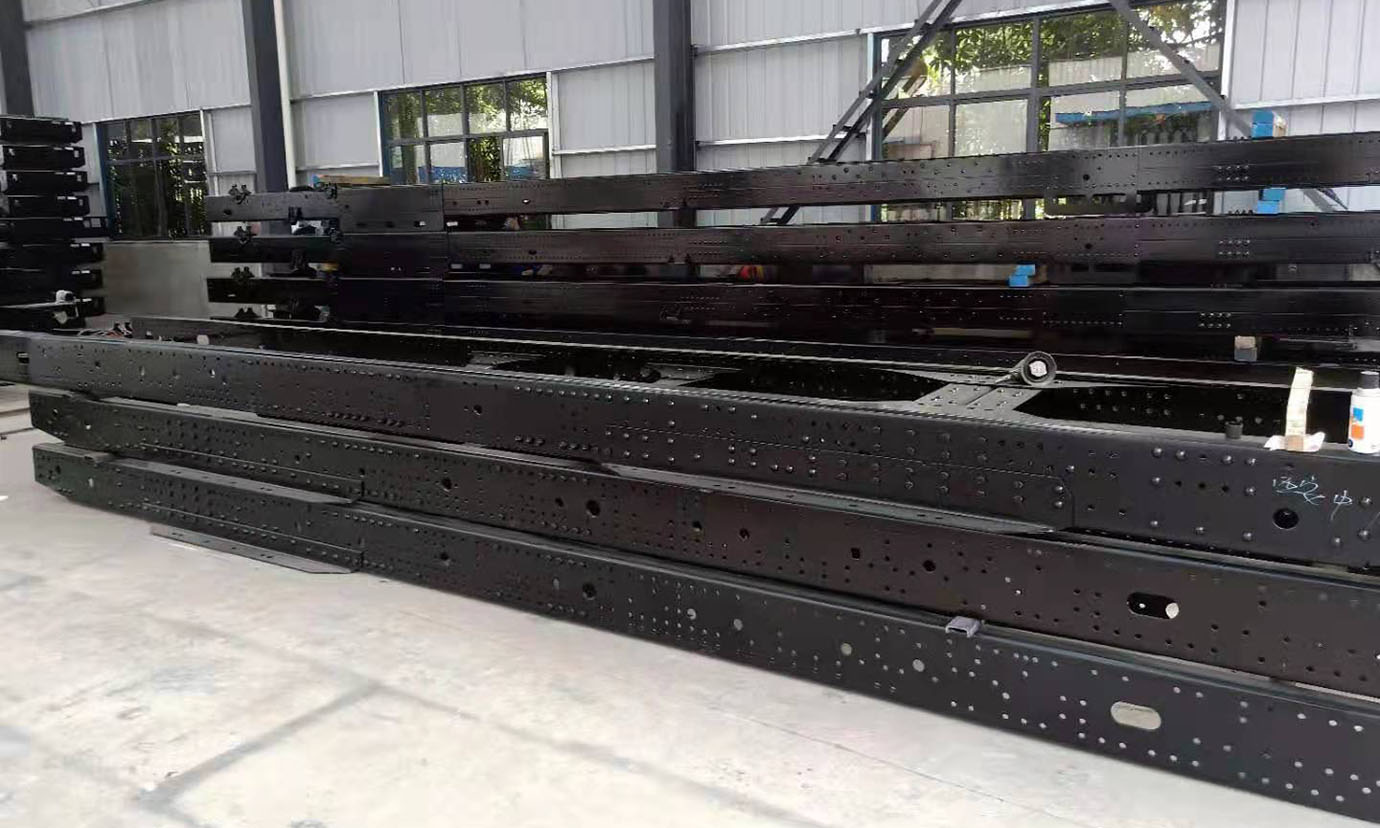

b) Makinawa atha kugwiritsidwa ntchito pokhomerera mbali zitatu za CNC za mtengo wautali wagalimoto wa U wokhala ndi gawo lofanana lagalimoto / lole.

c) Makinawa ali ndi mawonekedwe olondola kwambiri, kuthamangitsa mwachangu komanso kuchita bwino kwambiri.

d) Njira yonseyi imakhala yodziwikiratu komanso yosinthika, yomwe imatha kutengera kuchuluka kwa mtengo wautali wautali, ndipo ingagwiritsidwe ntchito kupanga zinthu zatsopano ndi batch yaying'ono ndi mitundu yambiri yopanga.

e) Nthawi yokonzekera kupanga ndi yaifupi, yomwe imatha kusintha kwambiri mtundu wazinthu komanso kupanga bwino kwa chimango chagalimoto.

Utumiki ndi chitsimikizo

Titumizireni imelo

ndi SGS Group

Ogwira ntchito

299

R&D ndodo

Ma Patent

154

Mwini wa mapulogalamu (29)

Tsatanetsatane wa Zamalonda

Product Process Control

Makasitomala Ndi Othandizana nawo

Mbiri Yakampani

Product Parameters

NO	Kanthu		Parameter
			PUL1232	PUL1235/3
1	Zambiri za U beam musanamenye	Kutalika kwa U beam	4000 ~ 12000 mm (+ 5mm)
		Mkati mwake mulifupi mwa U beam web	150-320 mm (+ 2mm)	150-340 mm (+ 2mm)
		Utali wa flange	50-110 mm (± 5mm)	60-110 mm (± 5mm)
		Unene wa beam	4-10 mm
		Kupatuka kwakutali kowongoka kwa Webusaiti	0.1%, ≤10mm / kutalika konse
		Longitudinal flatness kupatuka kwa flange pamwamba	0.5mm/m, ≤6mm/ utali wonse
		Kupindika kwakukulu	5mm / kutalika konse
		Ngongola pakati pa flange ndi intaneti	90^o±1
2	Deta ya U beam pambuyo kukhomerera	Kuboola pakati pa Web	Zolemba malire Φ 60mm.	Zolemba malire Φ 65mm. Zochepa ndizofanana ndi makulidwe a mbale
		Mtunda wocheperako pakati pa mzere wapakati wa dzenje pa intaneti pafupi kwambiri ndi mkati mwa flange	20mm pamene dzenje awiri ≤ Φ 13mm 25mm pamene dzenje m'mimba mwake ≤ Φ 23 50mm pamene dzenje awiri＞Φ 23mm
		Mtunda wocheperako pakati pa ukonde wamkati wa U beam ndi pakati pa dzenje la flange	25 mm
		Kulondola kokhomerera kudzawongoleredwa mkati mwa mndandanda wotsatirawu (kupatulapo mamilimita 200 malekezero onse awiri) ndi kulondola kwapakati pakati pa mabowo.	kulolerana mtengo wa dzenje katayanitsidwe mu X malangizo: ± 0.3mm/2000mm; ± 0.5mm/12000mm Kulekerera kwa mtunda wa dzenje la gulu mu Y malangizo: ± 0.3mm
		Kulondola kwa Distance kuchokera ku hole centerline mpaka m'mphepete mwamkati mwa flange	± 0.5mm
3	Module udindo ndi kukhomerera ulendo wa kukhomerera atolankhani	Makina osindikizira a CNC osunthika	18 ma modules, mzere wowongoka.
		Makina akulu akukhomerera ukonde CNC	Ma module 21, mzere wowongoka, ma module 5 opitilira Φ25.	Ma module a 21, mzere wowongoka, ma module 5 a Φ25.
		Fixed flange CNC punching press		6 ma modules, mzere wowongoka.
		Chosunthika flange CNC kukhomerera makina		18 ma modules, mzere wowongoka.
		Kuwotcha kwa makina akuluakulu	25 mm
4	Kuchita Mwachangu		Kutalika kwa mtengo wa U ndi mita 12 ndipo pali mabowo pafupifupi 300, nthawi yokhomerera imakhala pafupifupi mphindi 6.	Kutalika kwa mtengo wa U ndi mamita 12 ndipo pali mabowo pafupifupi 300, nthawi yokhomerera imakhala pafupifupi mphindi 5.5.
5	Utali x M'lifupi x Kutalika		pafupifupi 31000mm x 8500mmx 4000mm.	pafupifupi 37000mm x 8500mmx 4000mm.
6	Chida cha Magnetic In-feeding / Chipangizo chotsitsa maginito	Sitiroko yopingasa	Pafupifupi 2000 mm
		Yendani liwiro	pafupifupi 4m / min
		Kutalika kwa stacking	pafupifupi 500 mm
		Ulendo wopingasa	pafupifupi 2000 mm
		Mphamvu yamagetsi yopingasa	1.5 kW
		Ulendo woyima	Pafupifupi 600 mm
		Mphamvu yamagalimoto oima	4kw pa
		Chiwerengero cha ma electromagnets	10
		Mphamvu yamagetsi yamagetsi	2kn/ pa
7	Mu kudyetsa Manipulator	Kuthamanga kwakukulu	40m/mphindi
		X-axis stroke	Pafupifupi 3500 mm
8	Zosuntha za CNC Punching Press pa intaneti	Mphamvu mwadzina	800kN
		Mitundu ya nkhonya m'mimba mwake	9
		Nambala ya module	18
		X-axis stroke	pafupifupi 400 mm
		Kuthamanga kwambiri kwa X-axis	30m/mphindi
		Y-axis stroke	pafupifupi 250 mm
		Kuthamanga kwambiri kwa Y-axis	30m/mphindi
		Maximum nkhonya awiri	Φ23 mm
9	CNC kukhomerera makina kwa mbale yaikulu ukonde	Mphamvu mwadzina	Mtengo wa 1700KN
		Mtundu wa nkhonya	13
		Nambala ya module	21
		Y-axis stroke	Pafupifupi 250 mm
		Kuthamanga kwakukulu kwa y-axis	30m/mphindi	40m / mphindi
		Maximum nkhonya awiri	Φ60 mm	Φ65 mm
10	Chida chodulira maginito	Sitiroko yopingasa	Pafupifupi 2000 mm
12	Makina osindikizira a Flange CNC osunthika	Mphamvu yokhomerera mwadzina	800KN	650KN
		Kukhomerera dzenje awiri mitundu	9	6
		Nambala ya module	18	6
		Zolemba malire kukhomerera awiri	Φ23 mm
13	Linanena bungwe chuma manipulator	Kuthamanga kwakukulu	40m/mphindi
		Ulendo wa X axis	Pafupifupi 3500 mm
14	Hydraulic system	dongosolo kuthamanga	24 MPA
		Kuziziritsa mode	Mafuta ozizira
15	Pneumatic system	kuthamanga kwa ntchito	0.6 MPa
16	Njira yamagetsi		Siemens 840D SL

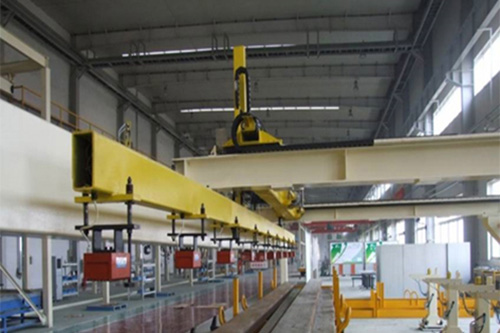

Chipangizo chodyetsera maginito chimaphatikizapo: chimango cha chipangizo chodyera, kusonkhana kwa maginito a chuck, chipangizo chonyamulira chapamwamba ndi chotsika, chipangizo chowongolera cholumikizira ndi mbali zina.

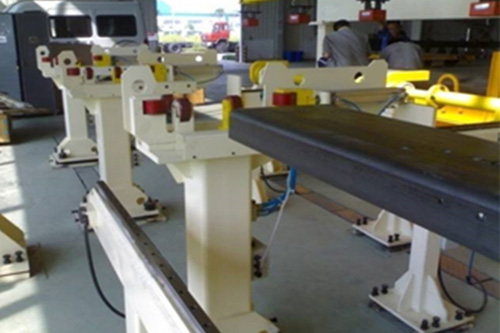

Njira yodyetsera imagwiritsidwa ntchito kudyetsa mtengo wautali wooneka ngati U, ndipo imapangidwa ndi gawo la tebulo lothandizira lokhazikika, gawo lozungulira lothandizira komanso choyendetsa galimoto.

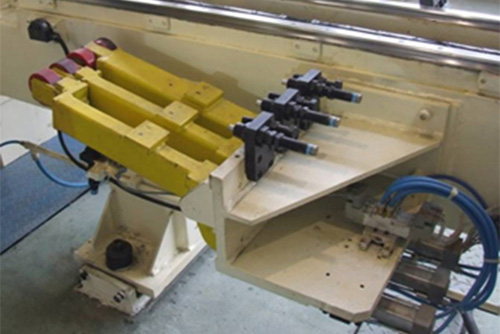

Gulu lirilonse la zigawo zozungulira zothandizira mpikisano zimakhala ndi mpando wokhazikika, chogudubuza chothandizira chosunthika, chodzigudubuza choyikira mbali, silinda yogwedezeka, chopukusira chakumbali ndi silinda yokankhira mbali.

Mndandanda wa zigawo zikuluzikulu zakunja

1	CNC ndondomeko	Siemens 828D SL	Germany
2	Servo motere	Siemens	Germany
3	Sensa yolondola ya mzere	Baluff	Germany
4	Hydraulic system	H+L	Germany
5	Zigawo zina zazikulu zama hydraulic	Zithunzi za ATOS	Italy
6	Linear kalozera njanji	HIWIN	Taiwan, China
7	Sitima yapamtunda yolowera	Mtengo HPTM	China
8	Mpira wolondola	Ine+F	Germany
9	Chothandizira cha screw	NSK	Japan
10	Pneumatic zigawo zikuluzikulu	SMC/FESTO	Japan / Germany
11	Single air bag cylinder	FESTO	Germany
12	Elastic coupling popanda kubweza	KTR	Germany
13	Frequency Converter	Siemens	Germany
14	Kompyuta	LENOVO	China
15	Kokani unyolo	IGUS	Germany
16	Makina opangira mafuta	HERG	Japan (mafuta ochepa)

Zindikirani: Zomwe zili pamwambazi ndizomwe timapereka.Iyenera kusinthidwa ndi zigawo zamtundu wina ngati wogulitsa pamwambapa sangathe kupereka zigawozo pakakhala vuto lililonse.
